Stainless Steel Flexible Conduit
Profile : Single Interlock
Stainless Steel Flexible Conduit That is manufactured using stainless steel strips which makes it corrosion resistance and highly durable. These are designed primarily for OEM Applications in specialty sensing devices, or medical equipment including fiber optice and for tight-spot installation. our range includes the benefits of stainless steel liquid tight conduits with a limited fire hazard covering for enhanced safety. Normaly SS304/SS316 used for making strainless steel conduit. Sometimes we are using SS321 as per customer choice.

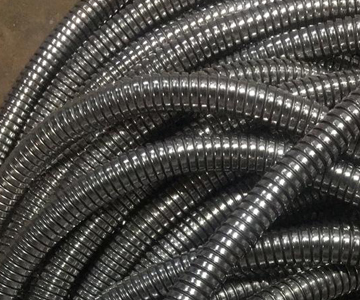

Profile : Double Interlock
Specification
| ID Nominal in mm(Size) | Tolerance on ID in mm | O.D. Max in mm | Minimum Bending Radius in mm | Minimum Linear Breaking Load in Kgf. | Minimum Bend fracture load in Kgf. | Length in Meters. OR Customer Choice |
|---|---|---|---|---|---|---|
| 6.5 | ± 0.5 | 9 | 28 | 35 | 11.5 | 35+ |
| 10 | ± 0.5 | 13 | 30 | 60 | 18 | 35+ |
| 12 | ± 0.5 | 16 | 32 | 78 | 22 | 35+ |
| 16 | ± 0.5 | 20 | 45 | 110 | 35 | 30+ |
| 19.5 | ± 0.5 | 23 | 60 | 140 | 40 | 30+ |
| 25 | ± 0.5 | 31 | 75 | 210 | 45 | 15+ |
| 30 | ± 0.5 | 35 | 85 | 250 | 53 | 15+ |
| 40 | + 1.0 - 0 | 46 | 120 | 330 | 70 | 15+ |
| 50 | -do- | 58 | 130 | 385 | 98 | 10+ |
| 63 | -do- | 70 | 178 | 430 | 125 | 10+ |
| 75 | -do- | 82 | 190 | 435 | 130 | 10+ |
| 100 | -do- | 108 | 250 | 500 | 190 | 10+ |
Flexible Metal Conduit (Brand : SAPA, Type : HEAVY)
| Material | Galvanized Steel Or Stainless Steel |
| Profile | Flat Square lock |
| Strip Used |
Mild Steel, Bright, Cold Rolled and annealed, at least equivalent in quality to Grade EN 2 and specified in BS : 1449 or IS : 513.
For Stainless steel conduit SS 304 Or SS 316 Strip used. For PVC Coating : Temperature withstand 900C |
| Galvanize Coating |
MS Conduit : 12 - 15 Micron minimum
SS Conduit : Mirror finish. PVC Thickness : 0.6mm to 2 mm based on customer requirement |
| Uses | Square lock provides protection for wring circuits located in extremely wet or damp areas. It is also suitable for machine, equipments where ruggedness is required and blowers, grinders, conveyors, automated lines, construction, industry and transportation. |
| Packing | Standard package shrink wrapped coil in bag. |
| Cat.# | Size | Internal Diameter (MM) | External Diameter (MM) | Min. Bend Redius (MM) | Coil Packing (Mtr) | Sheet Thickness |
|---|---|---|---|---|---|---|
| TI-BS-212 | 16mm | 10 | 13 | 30 | 15,20,25,30 | 0.25 |
| TI-BS-213 | 20mm | 17 | 20 | 30 | 15,20,25,30 | 0.25 |
| TI-BS-214 | 25mm | 21 | 24 | 43 | 15,20,25,30 | 0.25 |
| TI-BS-215 | 32mm | 28 | 32 | 50 | 15,20 | 0.35 |
| TI-BS-216 | 40mm | 35 | 40 | 57 | 10,15 | 0.4 |
| TI-BS-217 | 50mm | 45 | 50 | 70 | 10,15 | 0.5 |
