Stainless Steel Corrugated Hoses

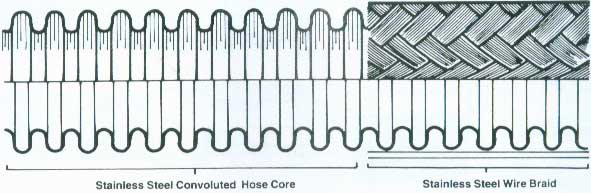

Stainless steel annular corrugated hoses have been developed to replace rubber & plastic hoses where very high temperatures and working pressures are encountered. These annular corrugated hoses are offered in size range 6 mm to 200 mm with single or double, S.S. Wire braiding. The working pressure ranges from 9- lb/in2 to 2300 lb/in2 and can be used at temperatures upto 600°.
| Tubex India Private Limited, Hajipur - 844102 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TECHNICAL SPECIFICATION FOR CORRUGATED HOSE & BRAID | ||||||||||||
| HOSE NB | HOSE | BRAID DETAILS | HOSE + BRAID | |||||||||
| mm | INCH | SHEET THK. (mm) | O.D. (mm) | I.D. (mm) | CORR. / MTR. | WIRE SIZE | NO. OF WIRE | NO. OF CARRIER | BEND RADIUS | WORKING PRESSURE Kg/cm² | TEST PRE. Kg/cm². | |
| mm | STATIC (mm) | FLEXING (mm) | ||||||||||
| 8 | 5/16 | 0.18 | Ø11.6 ± 0.3 | Ø8.0 | 350 ± 10 | 0.295 | 5 | 24 | 40 | 150 | 90 | 135 |
| 10 | 3/8 | 0.18 | Ø13.3 ± 0.3 | Ø10.0 | 345 ± 10 | 0.295 | 7 | 24 | 50 | 200 | 80 | 120 |
| 12 | 1/2 | 0.18 | Ø16.2 ± 0.3 | Ø12.0 | 295 ± 10 | 0.295 | 8 | 24 | 50 | 200 | 80 | 120 |
| 16 | 5/8 | 0.18 | Ø21.3 ± 0.3 | Ø16.2 | 240 ±10 | 0.295 | 8 | 36 | 50 | 200 | 70 | 105 |
| 20 | 3/4 | 0.20 | Ø27.3 ± 0.4 | Ø21.5 | 240 ±10 | 0.295 | 8 | 36 | 70 | 200 | 64 | 96 |
| 25 | 1 | 0.20 | Ø32.6 ± 0.4 | Ø27.0 | 220 ± 10 | 0.295 | 10 | 36 | 90 | 200 | 50 | 75 |
| 32 | 1¼ | 0.22 | Ø43.0 ± 0.4 | Ø32.3 | 170 ± 6 | 0.295 | 11 | 36 | 110 | 250 | 40 | 60 |
| 40 | 1½ | 0.22 | Ø51.0 ± 0.4 | Ø40.4 | 150 ±6 | 0.400 | 8 | 48 | 130 | 250 | 30 | 45 |
| 50 | 2 | 0.22 | Ø65.2 ± 0.5 | Ø50.4 | 130 ±5 | 0.400 | 12 | 48 | 175 | 350 | 28 | 42 |
| 65 | 2½ | 0.30 | Ø81.0 ± 0.5 | Ø65.3 | 120 ±5 | 0.500 | 10 | 48 | 200 | 410 | 24 | 36 |
| 80 | 3 | 0.30 | Ø97.7 ± 0.6 | Ø80.0 | 95 ± 4 | 0.500 | 6 | 96 | 205 | 450 | 18 | 27 |
| 100 | 4 | 0.30 | Ø119.0 ± 0.6 | Ø100.0 | 92 ± 4 | 0.500 | 8 | 96 | 230 | 560 | 16 | 24 |
| 125 | 5 | 0.40 | Ø150.0 ± 0.8 | Ø125.0 | 74 ± 4 | 0.500 | 10 | 96 | 280 | 660 | 12 | 18 |
| 150 | 6 | 0.40 | Ø175.0 ± 1.0 | Ø150.0 | 70 ± 4 | 0.500 | 10 | 96 | 320 | 815 | 10 | 15 |
| 200 | 8 | 0.50 | Ø225.0 ± 1.0 | Ø197.0 | 64 ± 4 | 0.500 | 12 | 96 | 435 | 1015 | 8 | 12 |
